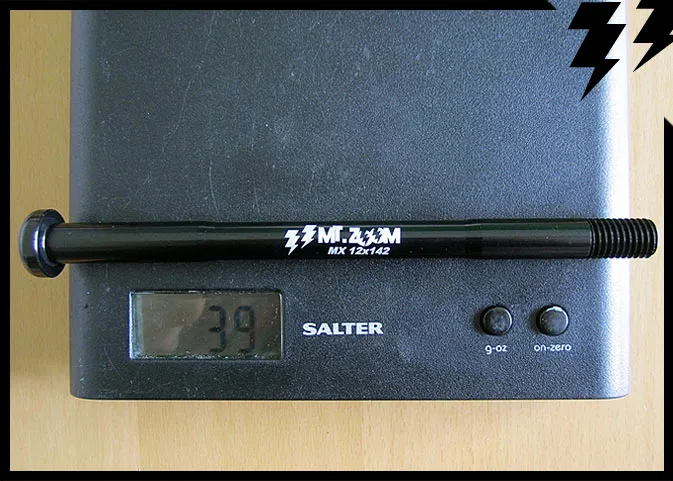

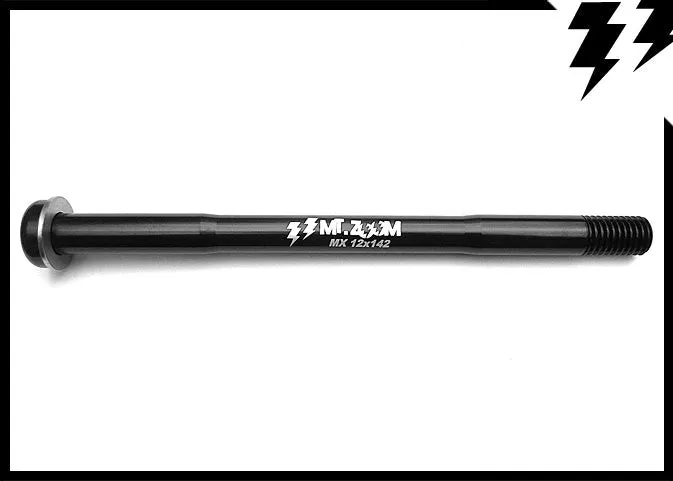

The MT ZOOM Maxle 12mm x 142mm rear thru axle is simple, light, strong and excellent value. At only 39g – drop some weight from your wheels.

Thread pitch 1.75mm. Length from inner washer 172.5mm.

2-year warranty.

[split]

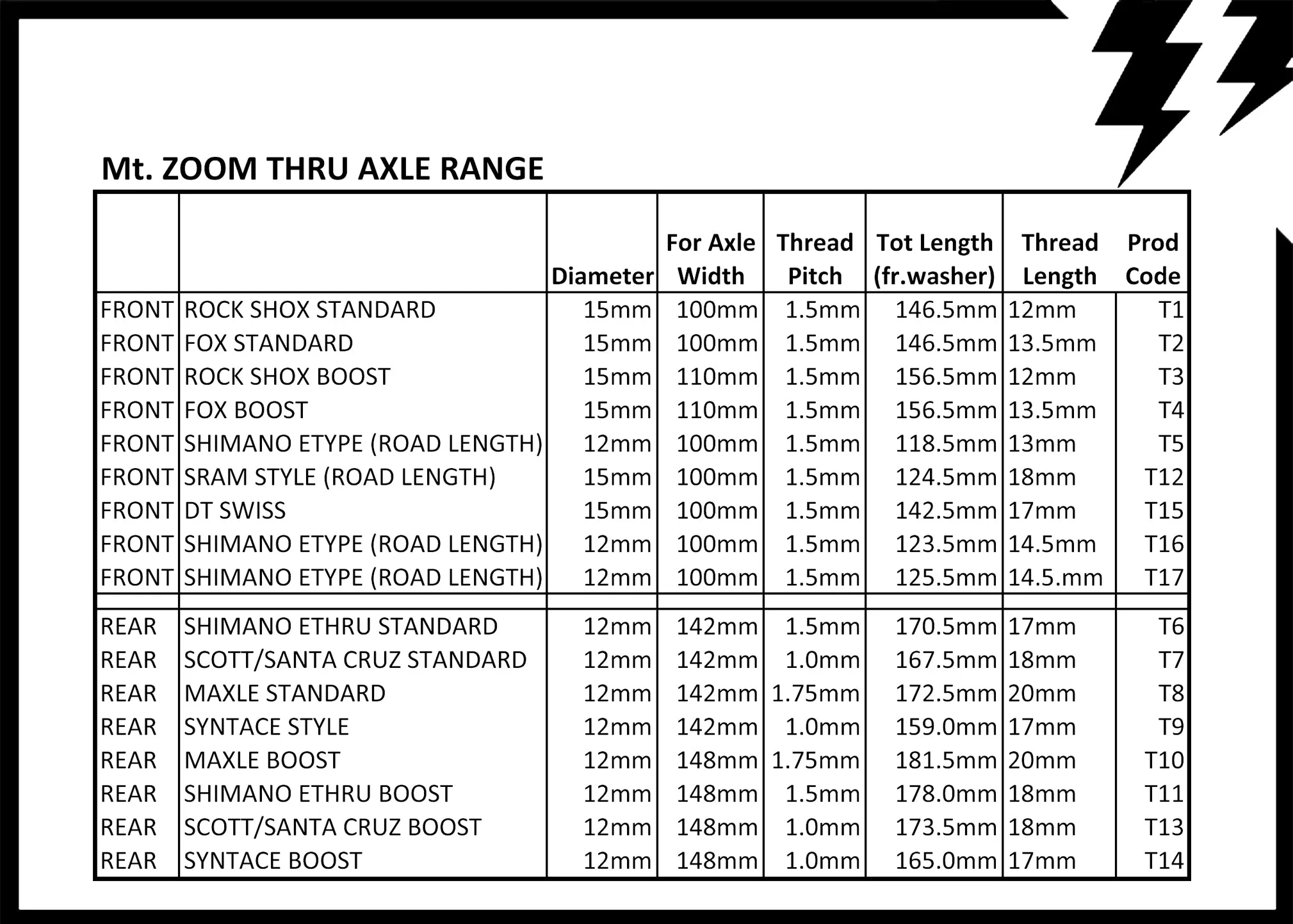

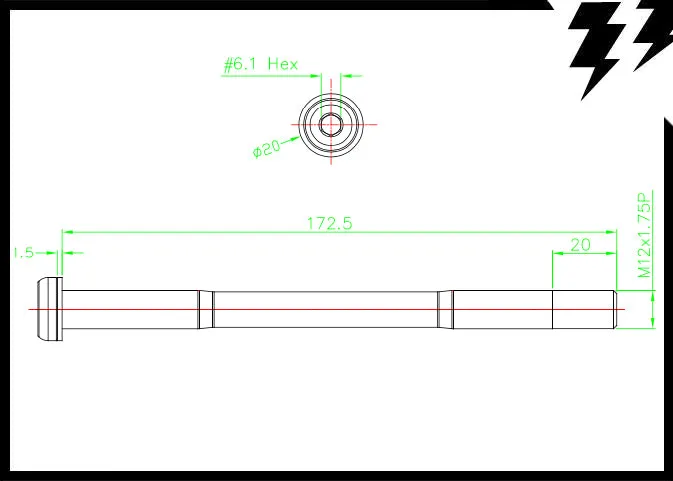

Key technical measurements:

• Thread pitch: 1.75mm

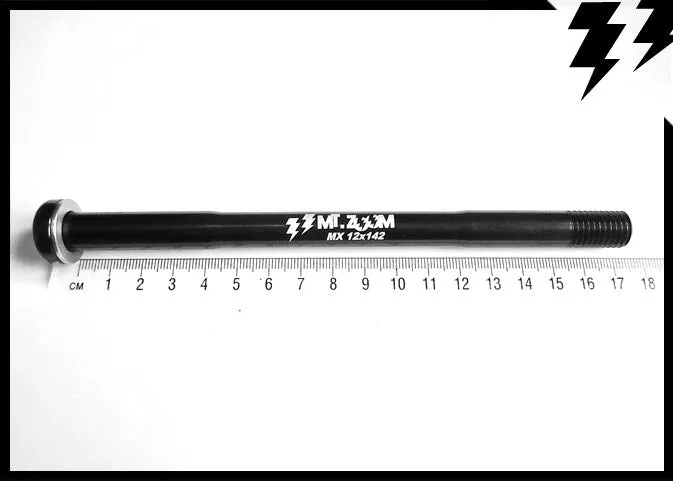

• Length from inner washer to end of thru axle: 172.5mm

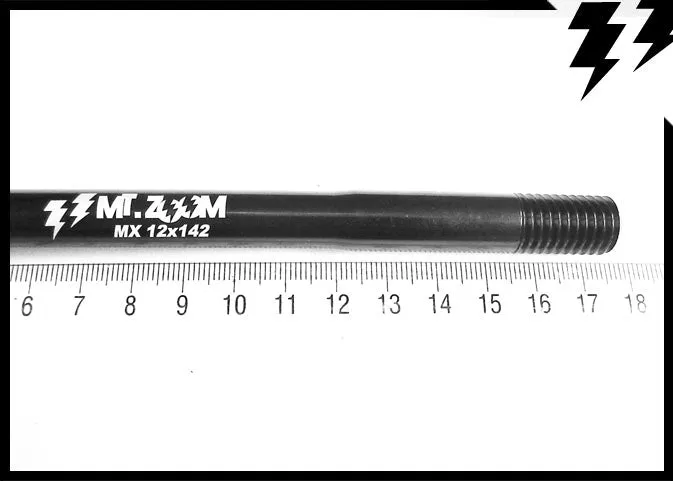

• Thread area length: 20mm
• Washer width: 1.5mm
• Inner axle maximum width: 12mm
• Product Code: T8

Anodised black / 7075 Aluminium

Frame compatibility list (not exhaustive)

BMC FourStroke FS02 (2014)
Ibis Mojo SL-R (2013)
Ibis Mojo HDR (2014)
Ibis Ripley (2013)
KTM Myroon Prestige, Prime, Master, Elite 29 (2015)
KTM Myroon Prestige, Prime, Master, Elite 27 (2015)
KTM Scarp Prestige, Prime Master, Elite 29 (2015)
KTM Scarp Prestige, Prime Master, Elite 27 (2015)
Niner RIP9 (2013-2015)
Niner SIR9 (2015-2016)
Trek Procaliber 9.9 SL, 9.8 SL, 9.7 SL (2016)
Trek Superfly 9.9 SL (2013-2015)
Trek Superfly 9.8 (2013-2015)
Trek Superfly 9.7 (2015)
Trek Superfly 9.6 (2014-2015) => after “closed convert” change
Wilier 101XN (2014)

[split]

The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives 1.5mm extra length to the axle.

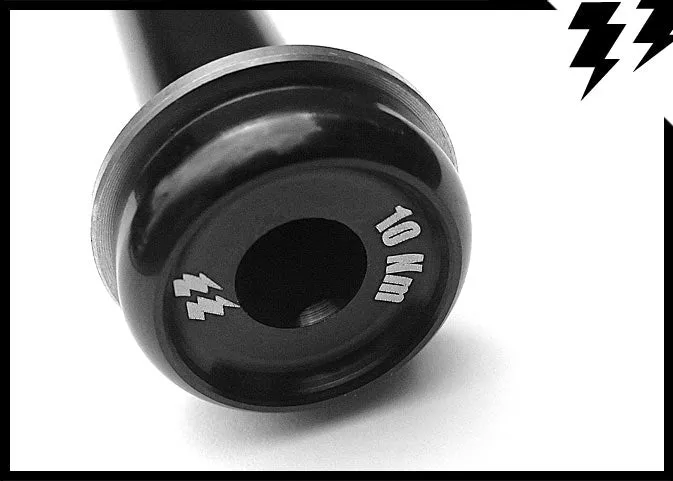

Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
