MT ZOOM centrelock/splined boost thru axle hub adaptor kit for boost spaced frames/forks. Use standard axle/hub spaced centrelock/splined hub wheels in a boost frame/fork with these adaptors. The wheel is then mounted and secured with your boost axle.

(Temporarily out of stock on the front one)

Compatibility: Converts Shimano/DT Swiss centrelock hub wheels for boost frames/forks. Not suitable for Fulcrum hubs or standard (non centrelock hubs) – we have adaptors for standard hubs on another listing.

[split]

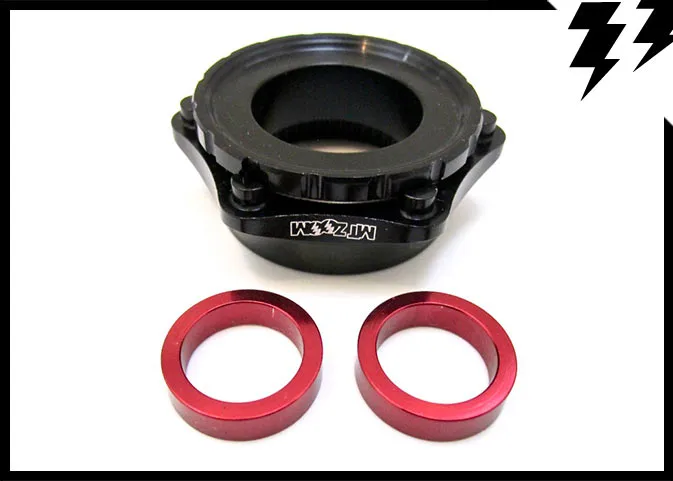

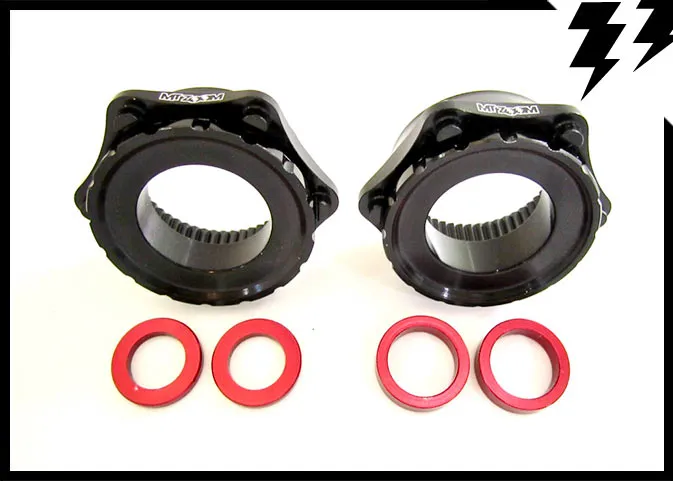

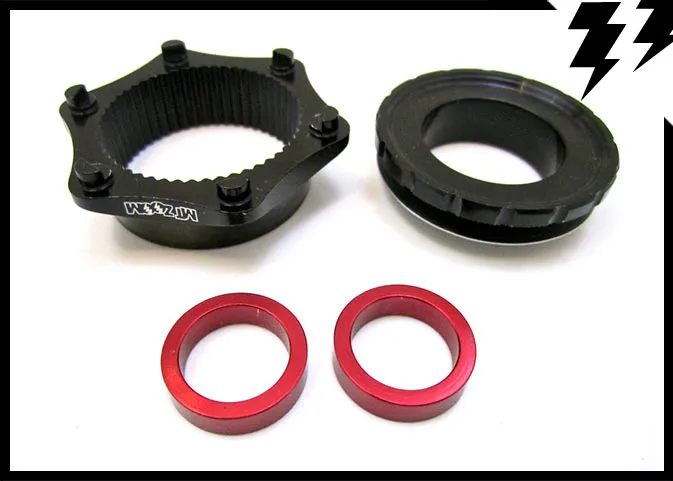

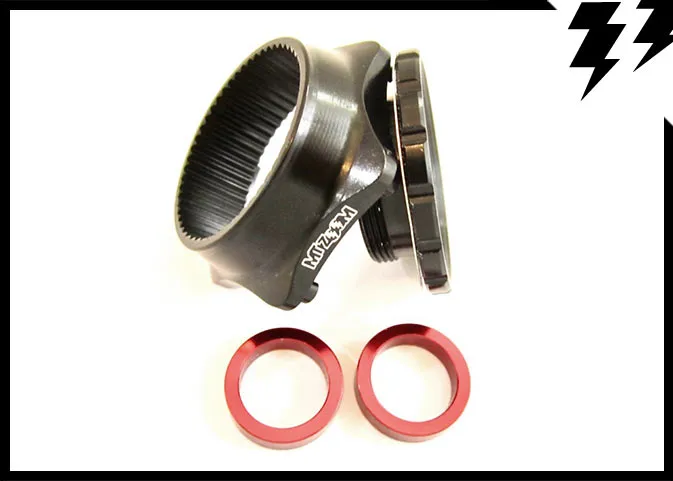

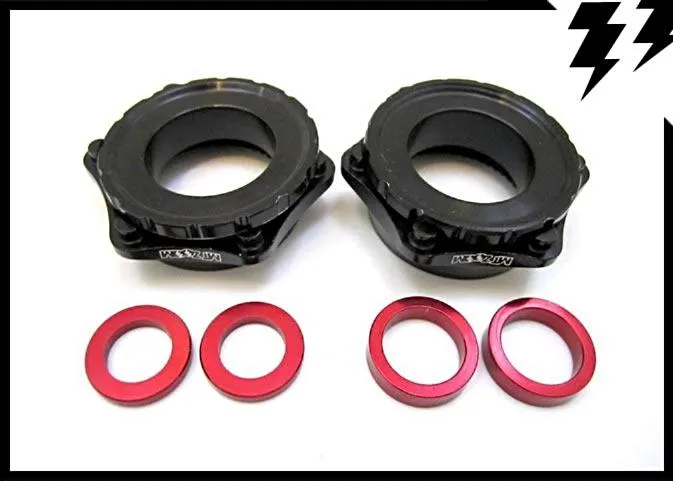

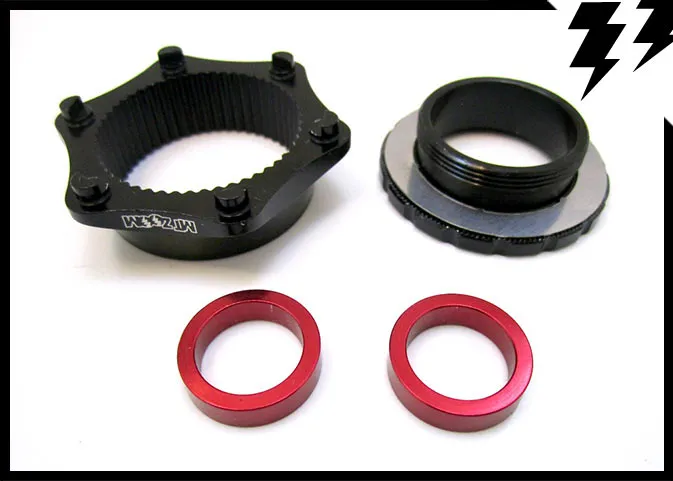

Front includes: 2 x 5mm RED spacers, centrelock adapter for 6 bolt brake disc rotor – has front 5mm spacing.

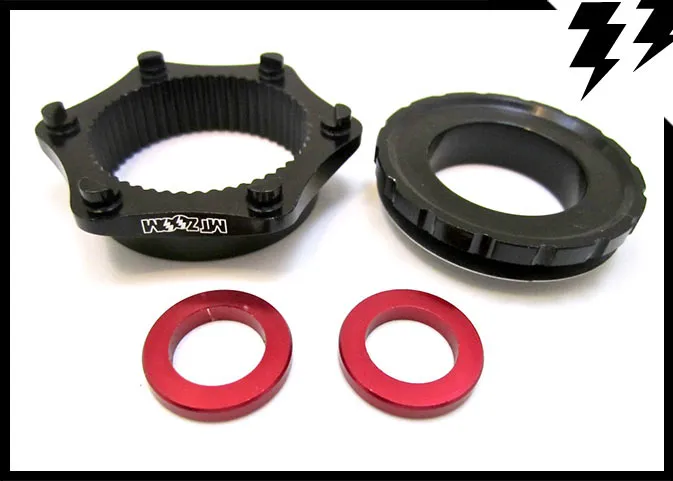

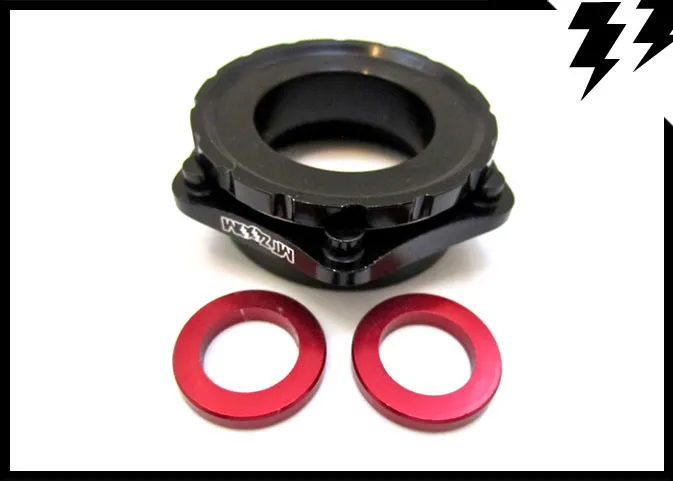

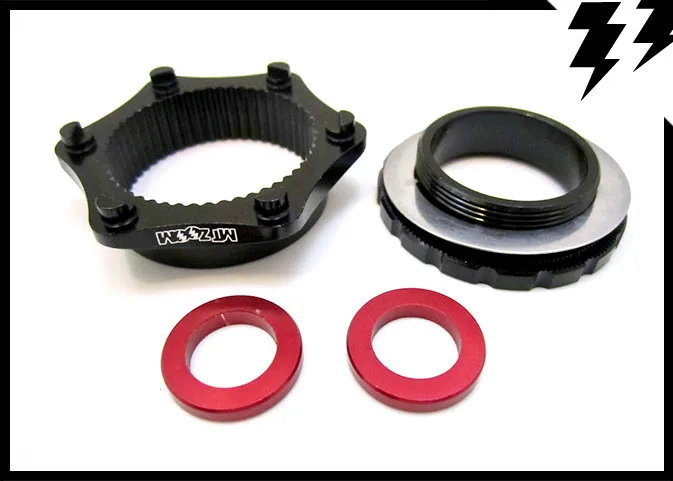

Rear includes: 2 x 3mm RED spacers, centrelock adapter for 6 bolt brake disc – has rear 3mm spacing.

• Lightweight: front 33g, rear 28g
• Material: Lightweight CNC alloy 6061


[split]

Installation instructions.

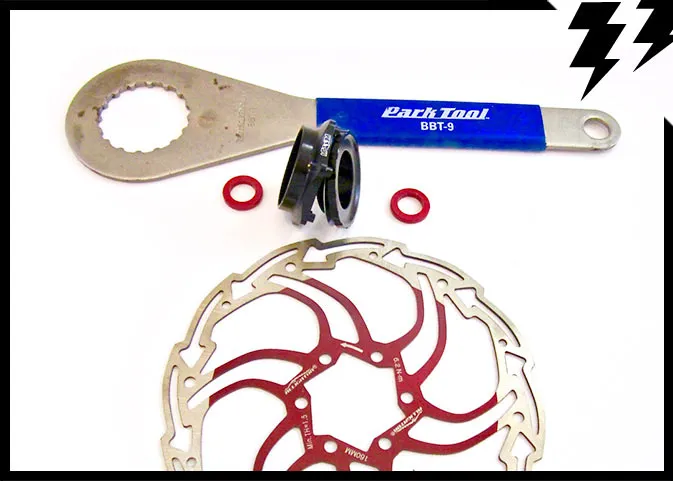

1. Note: You will need a standard 6 hole rotor (we sell great lightweight ones) & a Shimano hollowtech II tool (Park tool number: BBT-9) or C Spanner – see photo.

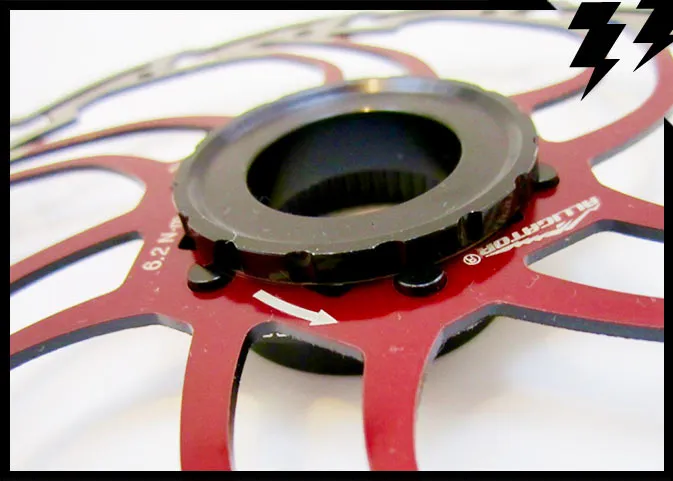

2. Tightly lock a 6 bolt rotor onto the hub with the 2 pieces of the adaptor using a hollowtech II BB tool or C Spanner.
3. Place the red spacer either side of the hub on the boost thru axle.
4. Fit your wheel as per normal. Periodically check to make sure the adaptor/disc is tight.
